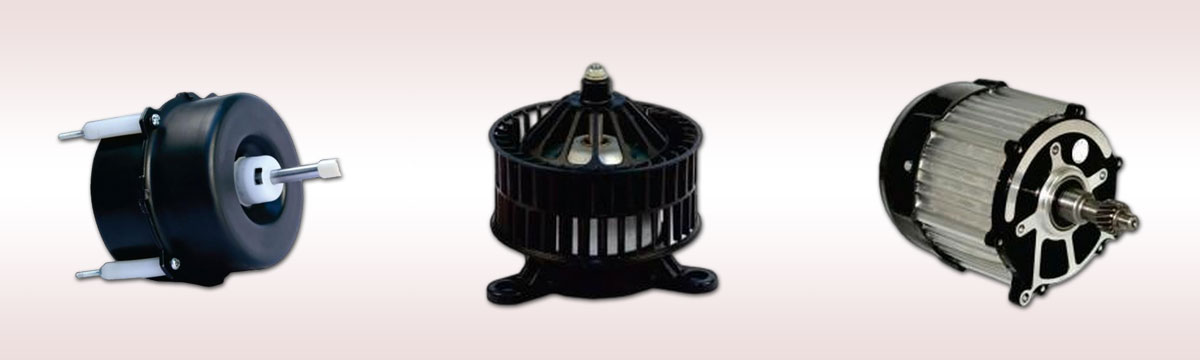

4/6 Pole PSC Motor

500 Piece (MOQ)

Piece

Edit

Business Type	Manufacturer, Exporter
Operating Temperature	-20 Degree C to 40 Degree c
Drop Test	50 cm in original packing
Vibration	10 Minutes/Plane, 15Hz, 2mm - Amplitude
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Bump Test

2000 bumps, 40G, 2-3 bumps/sec

Humidity

45 + 5°C, 90 + 5% RH, 168 hrs

Technical Details

Applications

Part No. System

Drawings & Dimensions

Electrical Specifications

MODEL NO.	POLES	OPERATING VOLTAGE	POWER WATTS (TYP)	CURRENT Amps (TYP)	SPEED (RPM) (FULL LOAD)	OUTPUT POWER	ROTATION	CAPACITOR	THERMAL OVERLOAD PROTECTION
10S30/2L-P	4	230V/50Hz	72 WATTS	0.36 Amps	1350, 1250, 1150	35 Watts	CCW	1.5 µf / 440V	145° + 5°C
10S25/2L-O	4	230V/50Hz	69 WATTS	0.34 Amps	1350, 1250, 1150	32 Watts	CCW	1.5 µf / 440V	145° + 5°C
10S23/2L-N	4	230V/50Hz	64 WATTS	0.29 Amps	1350, 1250, 1150	29 Watts	CCW	1.5 µf / 440V	145° + 5°C
10S20/2L-R	4	230V/50Hz	57 WATTS	0.28 Amps	1350, 1250, 1150	23 Watts	CCW	1.5 µf / 440V	145° + 5°C
95S30/2L-CK6	4	230V/50Hz	78 WATTS	0.56 Amps	1280, 1200, 1120, 1040	34 Watts	CCW	2.0 µf / 440V	145° + 5°C

MODEL NO.	POLES	OPERATING VOLTAGE	POWER WATTS (TYP)	CURRENT Amps (TYP)	SPEED (RPM) (FULL LOAD)	OUTPUT POWER	ROTATION	CAPACITOR	THERMAL OVERLOAD PROTECTION
95B254C1E/2L-CJ8	4	230V/50Hz	80 WATTS	0.36 Amps	1350	30 Watts	CCW	2.5 µf	145° + 5°C
95B256C1E/2L-CJ12	6	230V/50Hz	83 WATTS	0.37 Amps	850	32 Watts	CCW	2.5 µf	145° + 5°C
95B306A1E/2L-CK21	6	230V/50Hz	78 WATTS	0.35 Amps	900	38 Watts	CCW	2.5 µf	145° + 5°C
95B306A1E/2L-CK33	6	230V/50Hz	98 WATTS	0.44 Amps	890	50 Watts	CCW	3.15 µf	145° + 5°C
95B304C1E/2L-CK27	4	230V/50Hz	96 WATTS	0.45 Amps	1050	45 Watts	CCW	2.5 µf	145° + 5°C
95B306C1E/2L-CK17	6	230V/50Hz	106 WATTS	0.48 Amps	900	54 Watts	CCW	3 µf	145° + 5°C
95B384C1E/2L-CM02	4	230V/50Hz	144 WATTS	0.56 Amps	1200	65 Watts	CCW	2.5 µf	145° + 5°C
